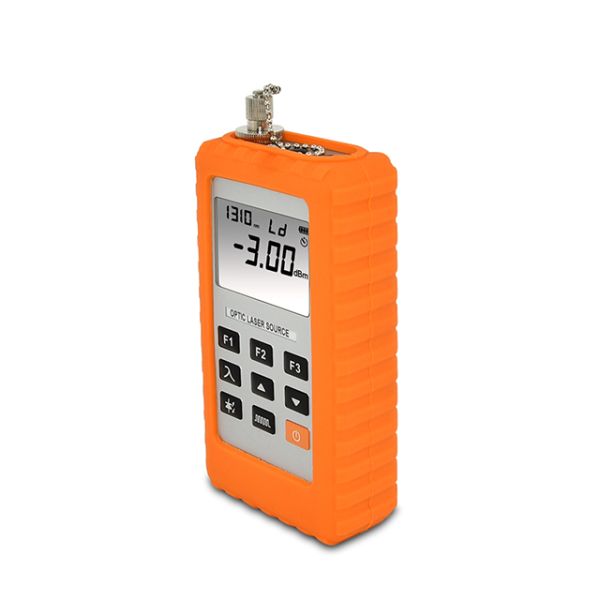

FTTX Fiber Test Equipment , Fiber Optical Power Meter With Light Source OLS-TQ2XX

Name: FTTX Fiber Test Equipment Fiber Optical Power Meter With Light Source OLSTQ2XX
Brand: ODM/OEM
Price: 79.00 USD

Wholesale FTTX Fiber Test Equipment , Fiber Optical Power Meter With Light Source OLS-TQ2XX from china suppliers

Model Number : OLS-TQ2XX

Place of Origin : China

Brand Name : ODM/OEM

Packaging Details : 1pc/carton

Supply Ability : 50 Set/Sets per Month

Price : $79.00 - $89.00/pieces

Type : Fiber Optic Cable

Use : FTTX

Warranty Time : 1 YEAR

Detector Type : InGaAs

Interface Type : FC/PC(Optional: SC/ST)

Power Measuring Range(dBm) : -50~+26, -70~+10

Measuring Wavelength(nm) : 850/1300/1310/1490/1550/1625

Precision : ±0.01dB

Storage : 1000

Power Supply : 3 * 1.5V dry batteries

Battery Life : >200h

Operating Temperature : -10℃~+60℃

Storage Temperature : -25℃~+70℃

Contact Now

Optic Fiber Test Equipment Fiber Optical Power Meter with Light Source OLS-TQ2XX for CCTV Communication Engineering

Product Description

OLS-2xx series of high stability of the basic type of laser light source use the most advanced dedicated integrated chip for hand-held instrumentation to achieve ultra-low power operation, and use the advanced control technology to achieve high stability output. This instrumentation can provide 4 wavelength light source.

FTTX Fiber Test Equipment , Fiber Optical Power Meter With Light Source OLS-TQ2XX

Feature

◆ Portable design.

◆ FC/PC adapter(SC/ST customized)

◆ High quality measuring

◆ 3.5'LCD

◆ Available for SM & MM fibers

◆ Low power consumption, 60 hrs working

◆ Available for FTTH optic power test

Specification

Technical Specifications	OLS-TQ210	OLS-TQ220	OLS-TQ230
Operating Wavelength	850/1300	1310/1550	1490/1550
Luminescent Device Type	FP-LD
Interface Type	FC(Optional: SC/ST)
Output Power(dBm)	>-5
Modulation Mode	CW/270Hz/1KHz/2KHz
Output Stability(dBm)	±0.04 @20℃ @15min
Power Supply	3 * 1.5V dry batteries
Battery Life	>60h
Operating Temperature	-10℃~+60℃
Storage Temperature	-25℃~+70℃
External Dimension	140mm63mm31mm
